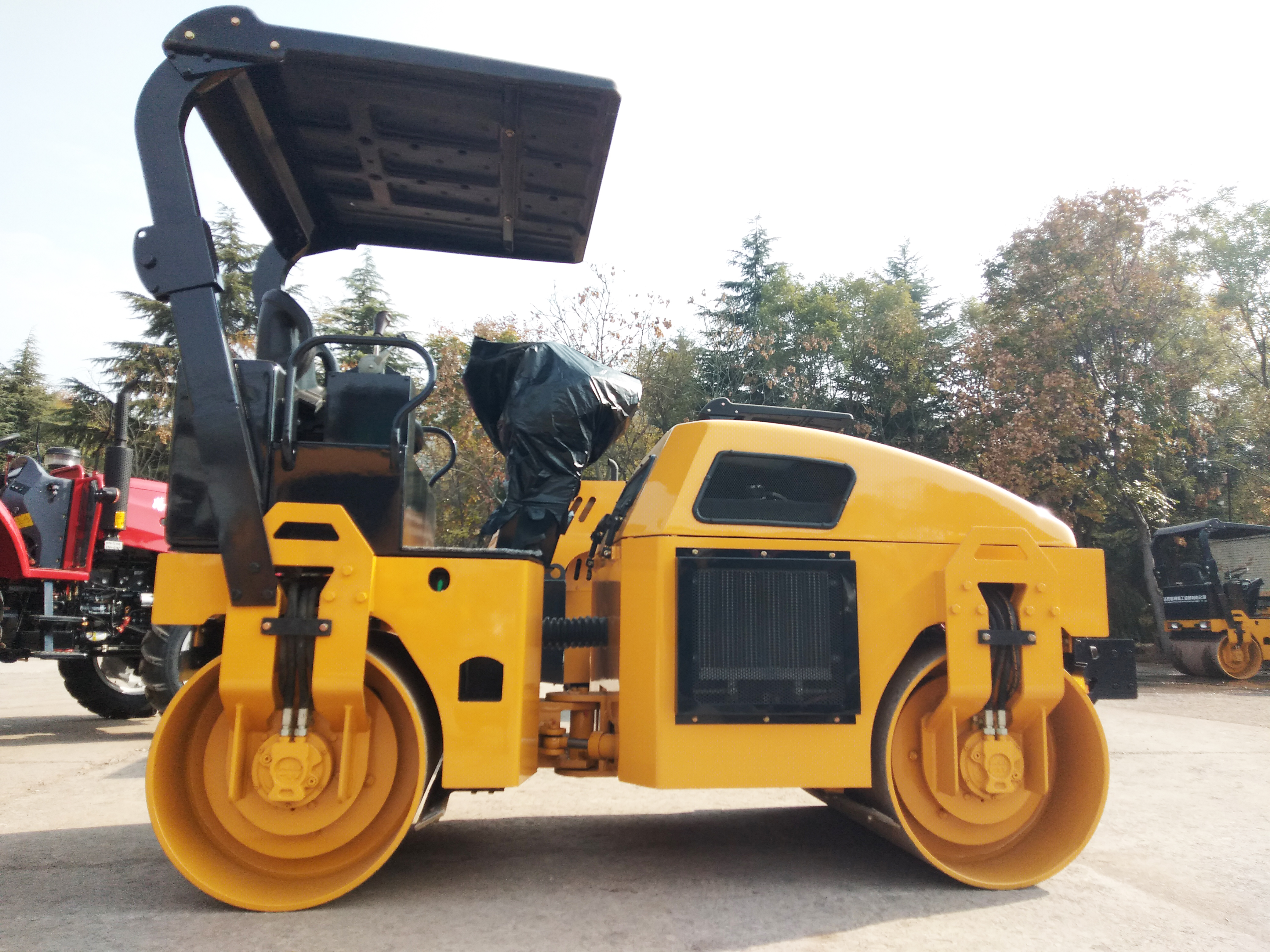

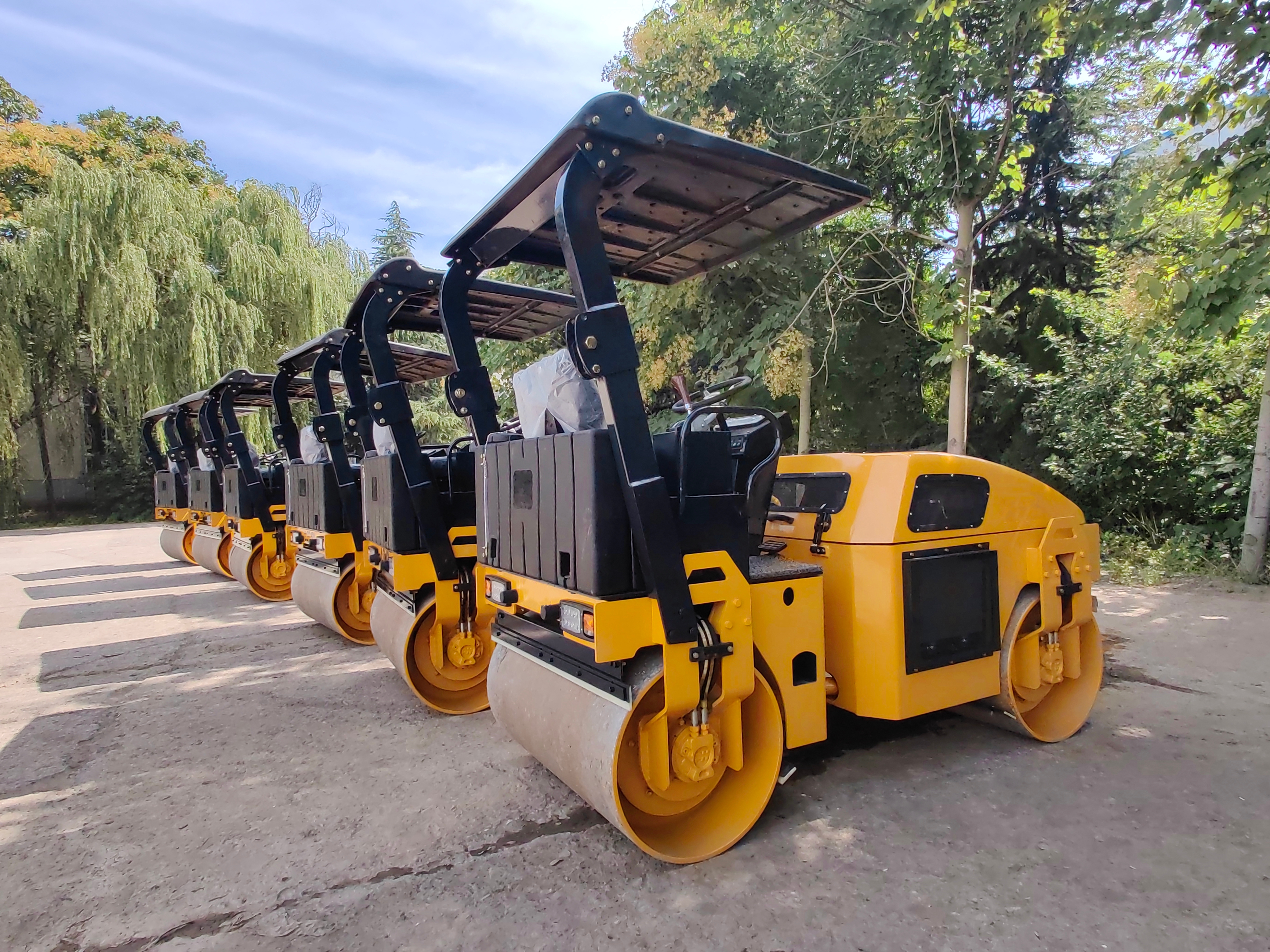

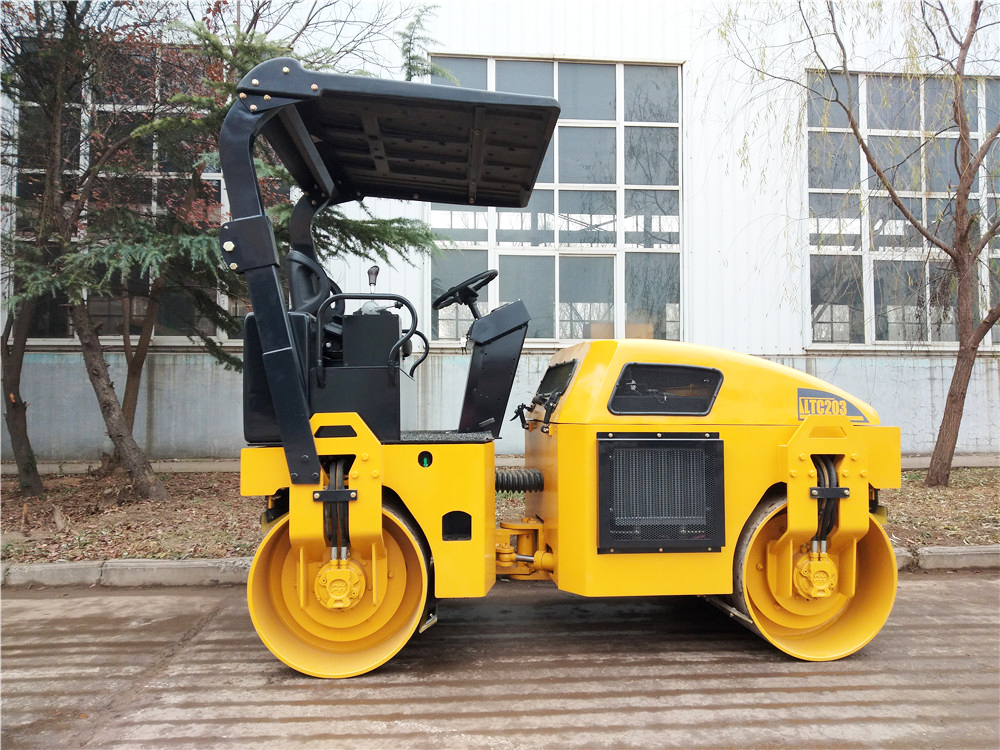

LTC203, LTC203P, LTC204, LTC204P Hydraulic double drum vibratory roller, applicable for maintenance of municipal roads , as well as the compaction of the narrow road surfaces such as groove foundation, building construction, pipeline backfill and stadium.
Main Features
1. Hydraulic double wheels drive, Hydraulic doubel wheels vibration and steering, with reliable performance and optimum function/price ratio.
2. Both front and rear wheels have scraping and water spray unit.
3. Adopt CHANGCHAI ZN390B diesel engine, very convenient for use and maintenance.
4. Compact integral structure, small volume, capable of used for compaction on narrow site. With small investment, quick return of good economic.

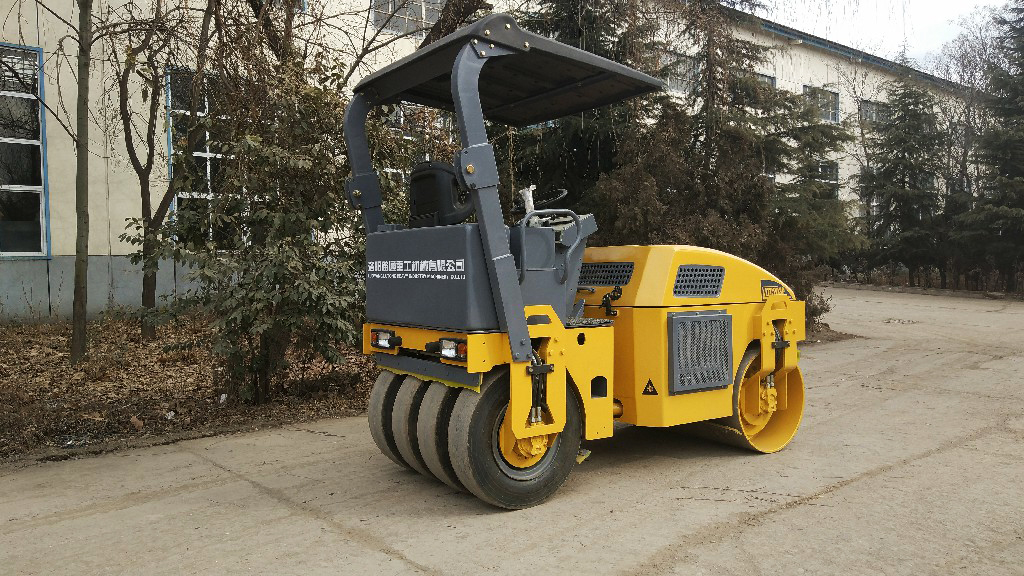

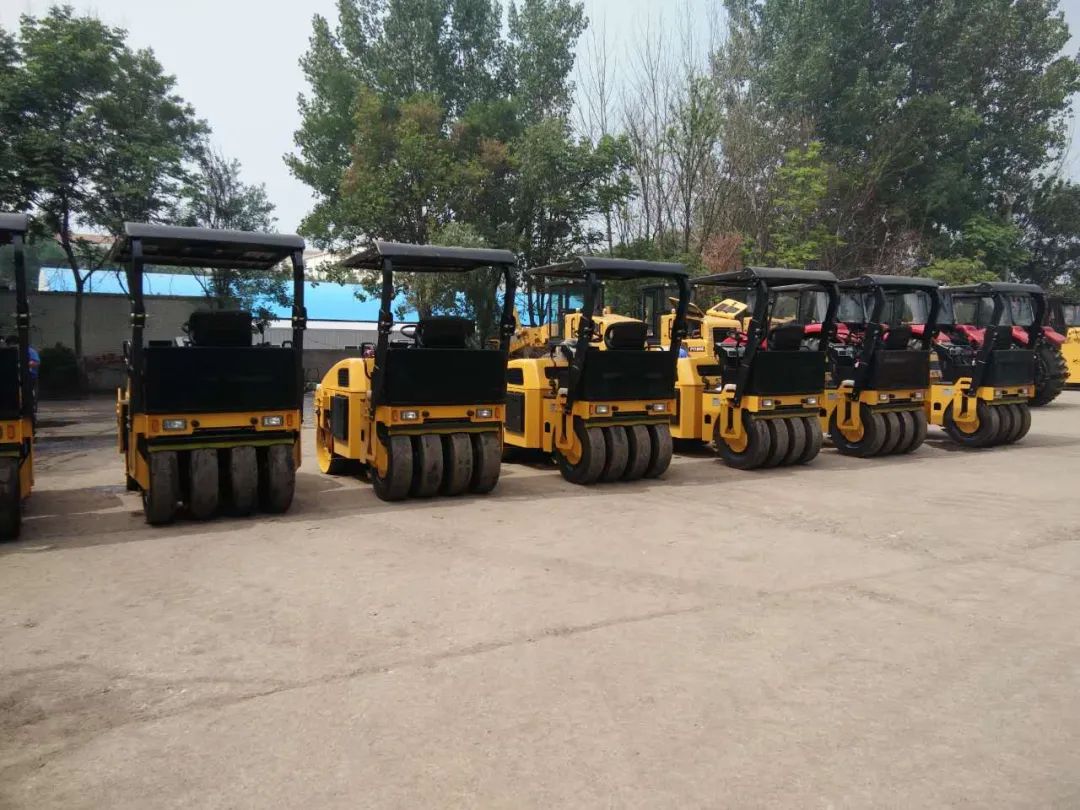

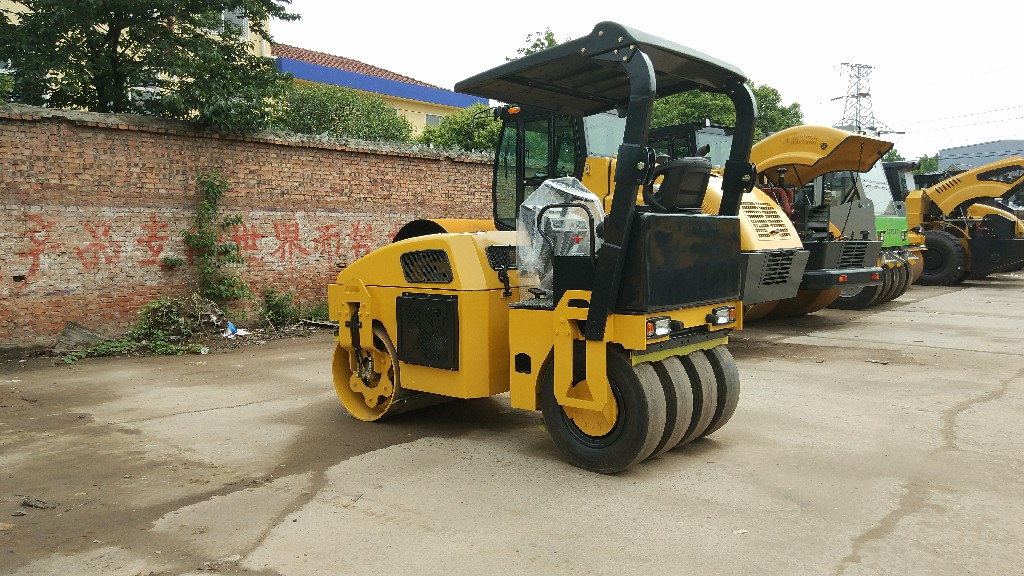

5. LTC203P,LTC204P rear wheel is combined of four smooth tyres, has both function of steel drum roller and tyre roller, which can effectivelly improve the compaction quality of asphalt pavement, and improve the climbing ability.
MAIN TECHNICAL PARAMETERS:
MODEL | LTC203 | LTC204 | LTC204P | LTC203P | |
Operating mass | Kg | 3300 | 4000 | 3800 | 3000 |
Static linear load (front/rear) | N/cm | 136/136 | 150/150 | 150/200 | 136/180 |
Vibration Amplitude | mm | 0.5/0.5 | 0.5/0.5 | 0.5 | 0.5 |
Vibration frequency | Hz | 50 | 50 | 50 | 50 |
Centrifugal force | KN | 2x30 | 2x30 | 30 | 30 |
Travel speed | Km/h | 0-12 | 0-12 | 0-12 | 0-12 |
Steering Angle | ° | ±26 | ±26 | ±26 | ±26 |
Grade ability | % | 30 | 25 | 25 | 32 |
Drum width | mm | 1250 | 1300 | 1300 | 1250 |
Drum diameter | mm | 700 | 700 | 700 | 700 |
Wheel base | mm | 2010 | 2010 | 2010 | 2010 |
Overall length | mm | 2760 | 2760 | 2760 | 2760 |
Overall width | mm | 1400 | 1400 | 1400 | 1400 |
Overall height | mm | 2520 | 2520 | 2580 | 2580 |
Diesel model | ZN390B | ZN390B | ZN390B | ZN390B | |
Diesel power | KW | 26.5 | 26.5 | 26.5 | 26.5 |
Water tank capacity | L | 200 | 200 | 200 | 200 |
Rear tyre No. | pcs | / | / | 4 | 4 |
Rear tyre size | / | / | 7.50-15 | 7.50-15 |
