Model | LTB604 |
Drive Type | 4WD |
Overall Dimension(mm) | 3925×1728×2870 |
Min. operating weight(kg) | 2565 |
Rated traction force(N) | 10300 |
Wheel tread (front/rear) | 1265/1320 |
Wheel base(mm) | 2010 |
Min. ground clearance(mm) | 360 |
Min. Turning Radius(mm) | ≤4.3 |
Theoretical Speed(forward) | 2.32~30.96 |
Theoretical Speed(reverse) | 2.04~27.14 |
Engine Model | Vertical, water cooled, four stroke, direct injection |
Number of cylinders | 4 |
Engine Rated speed(r/min) | 2400 |
Engine Rated power (Kw) | 44.1 |
Clutch | Single,dry type,dual-function |
Gear box | 4×3×(1+1) |
Main drive | Spiral bevel gearing |
Differential | Closed, 4 planeatry bevel gears |
Differential lock | Mechanical locking differential |
Final drive | Single planeatry gear |
Tyre(front) | 8.3-24 |
Tyre(rear) | 11-32 |
Steering gear | Front wheel hydraulic steering |
Brake | Wet type, disc brake |
PTO Speed (r/min) | 540/760 or 540/1000 |
PTO Spline Size | 6 splines or 8 splines-φ38mm |
Max. lifting force( KN ) | 10584 |
3-Point suspension | Category:II |

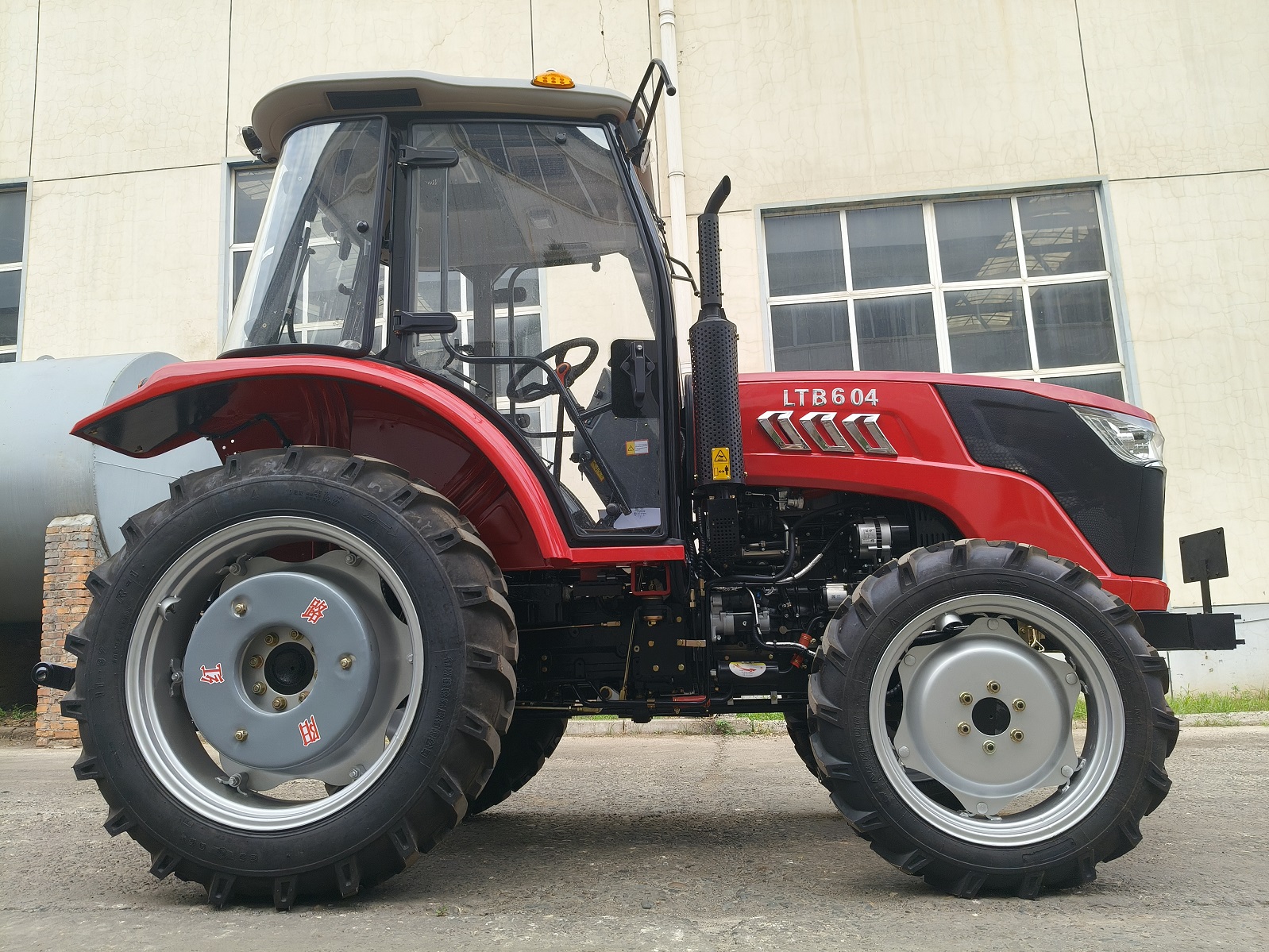

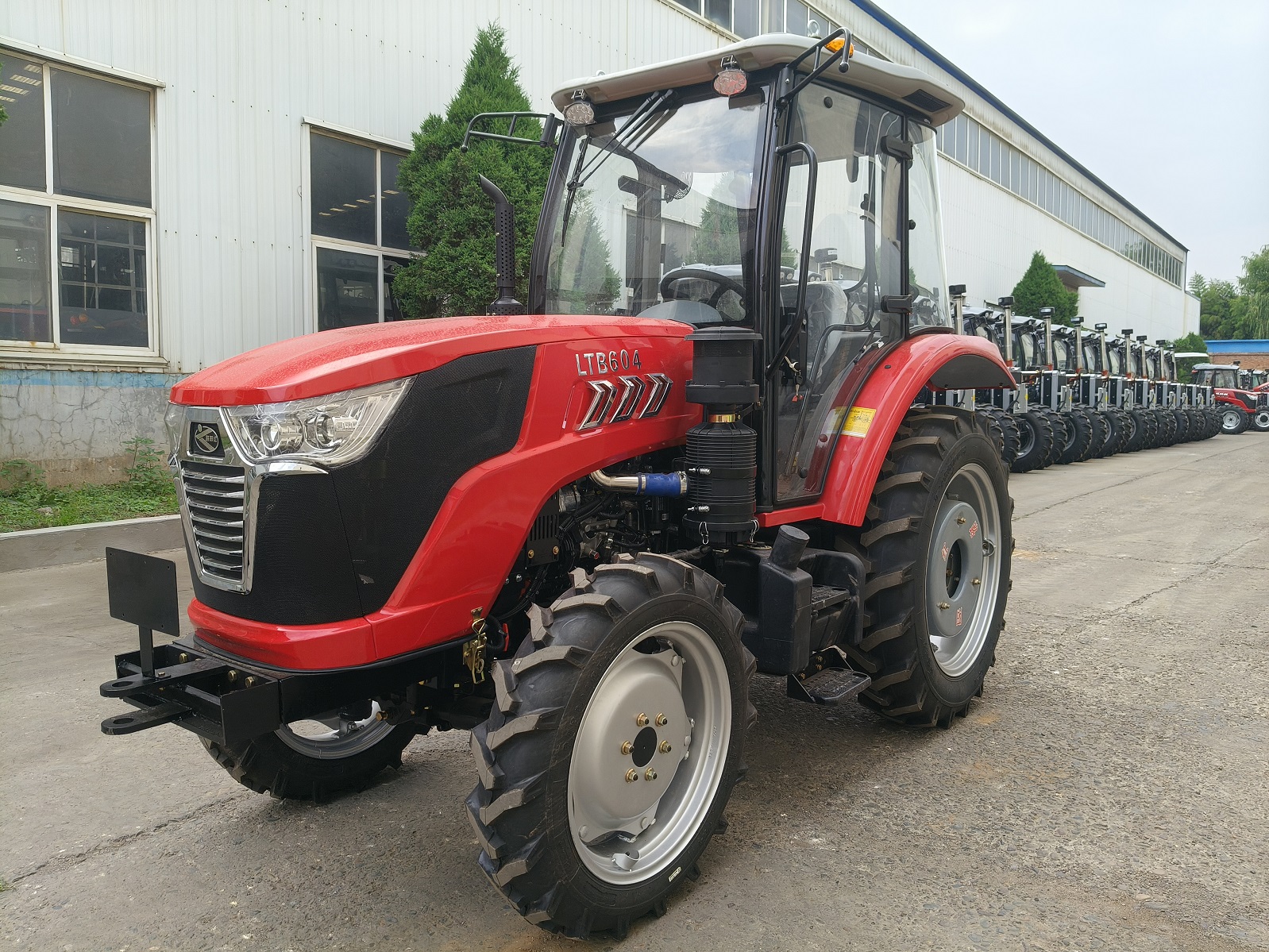

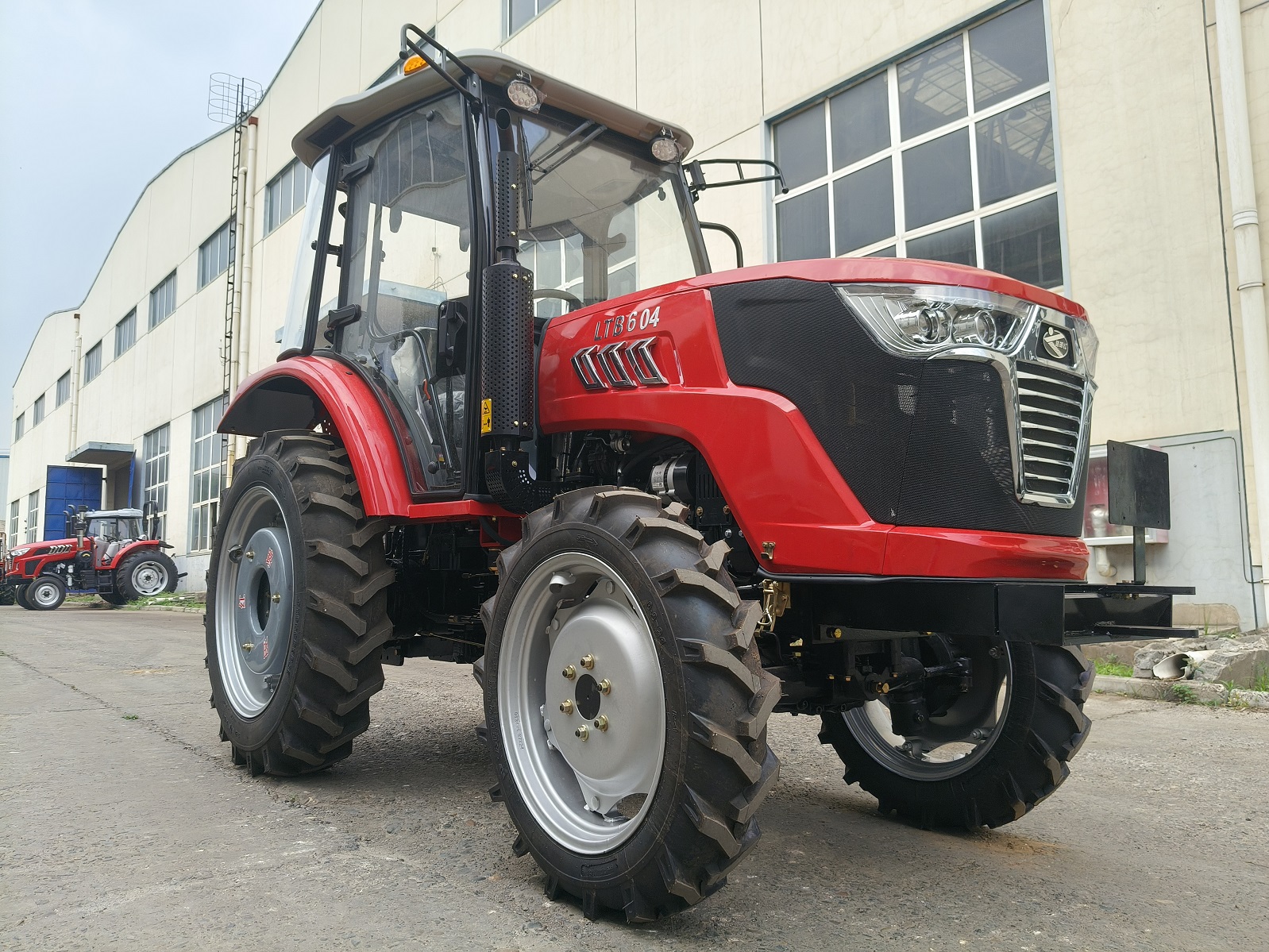

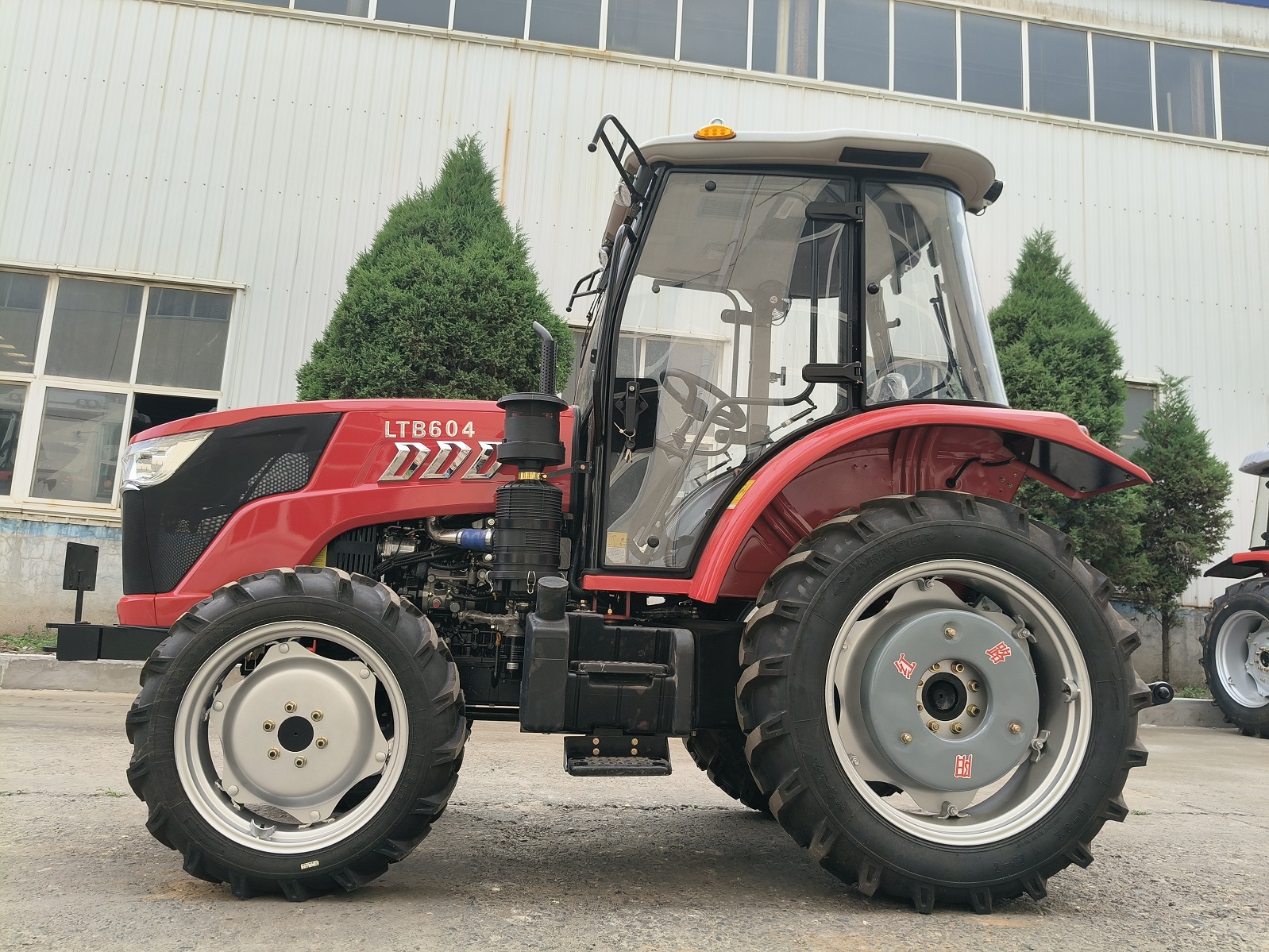

LTB604 Tractor

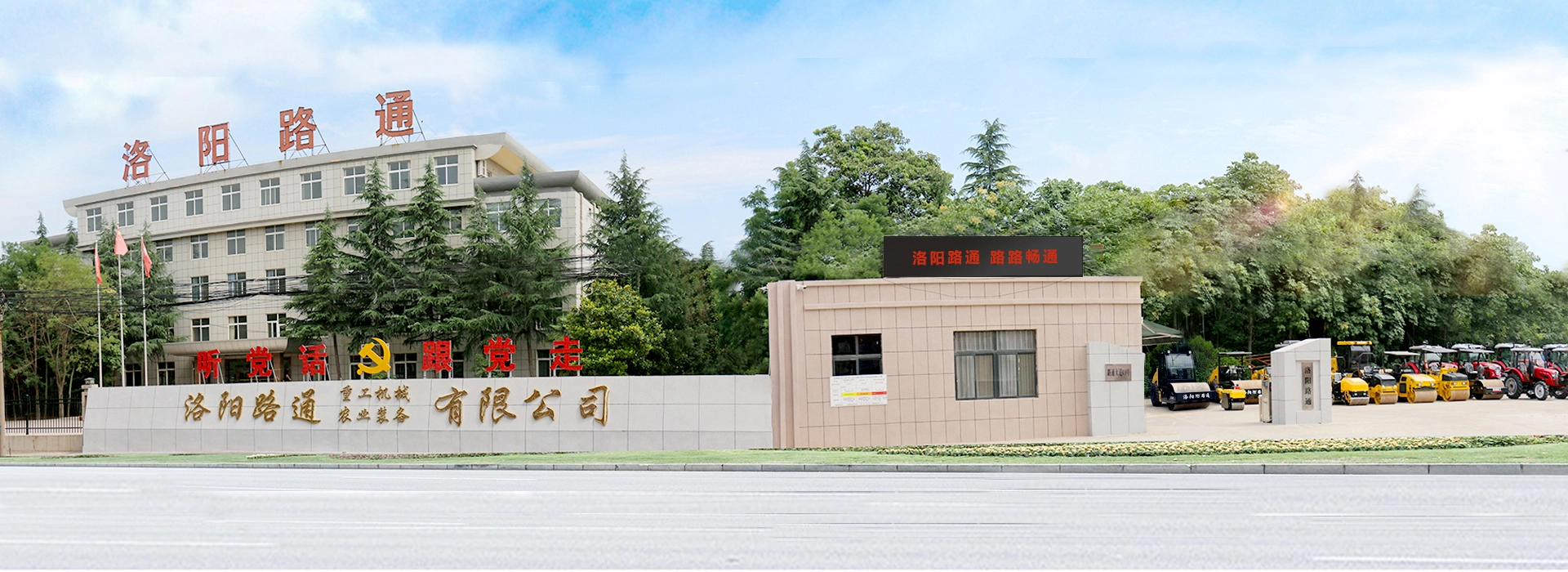

Luoyang Lutong Agricultural Equipment Co., Ltd. is mainly engaged in the production of large and medium-sized wheel tractors, which are subsidized by Chinese state govemment. Our main products are Lutong 40HP-260HPseries. According to the requirements of customers, we have developed a variety of configurations suitable for the market demand, such as widening the wheelbase, heightening the ground clearance, using swing drawbar and common drawbar at the same time.the same time....
